Cleaning and drying

Mechanical Cleaner / Dryer

Type: MD

The WIPA Intensive Cleaner type MD can be used for cleaning plastics with and without water. This machine is also used as a dryer, e.g. at the end of a car wash.

Dry cleaner
Intensive cleaning of plastic regrind without water.

Centrifugal dryer
Drying of plastic regrind.

Washing centrifuge
Effective cleaning with water.

Mechanical Cleaner / Dryer

The process

The material is fed in at the top end of the housing. The material is conveyed to the discharge side by the internal rotor and the exchangeable throwing blades mounted on it. As the material enters the machine, it is greatly accelerated, forcing contaminants such as paper fibers, sand and organics as well as adhering water through the holes in the screen basket. To achieve a consistent result, the screen basket is cleaned continuously. Depending on the type and degree of soiling and the use of the machine, different systems can be used to remove the soiling.

Strainer basket

The polygonal screen basket ensures continuous turning of the material, which significantly improves the separation of impurities. A square strainer basket, as installed in the WIPA MD, offers a higher degree of cleaning compared to round strainer baskets. More corners mean more friction and therefore a better cleaning effect. Changing a screen has never been easier or more cost-effective than with the new screen design of the WIPA MD series. The screen elements are simple, inexpensive perforated plates that are screwed onto a skeleton. All panels have the same dimensions, which saves storage and spare parts costs, as the elements can be interchanged or simply replaced. To change the sieve elements, simply loosen the clamping elements that hold the sieves on the skeleton using 3-5 screws (depending on the size). In the feed area of the machine, the screening elements are subjected to greater stress than in the rear part of the machine, which results in higher and faster wear. Thanks to the identical dimensions of the screen plates in the front and rear part of the machine, the screen elements can be changed from front to rear. This saves on spare parts costs, as the screen plates can be used for longer. Separate sieve elements also allow the use of different sieve perforations. This means, for example, that a larger screen perforation can be installed in the infeed area of the machine than in the rear area of the machine. Screen elements with thicknesses of 2-12 mm are available. The screen perforation can be individually adapted to the material. Round perforations between 2 and 3 mm are used as standard. However, other screen types with e.g. conical or angular perforations, as well as special screen elements for e.g. the processing of fibers or big bags can be supplied. The new screen design offers a much larger screening surface than comparable systems, which significantly increases the separation, washing and drying results.

Mechanical Cleaner / Dryer

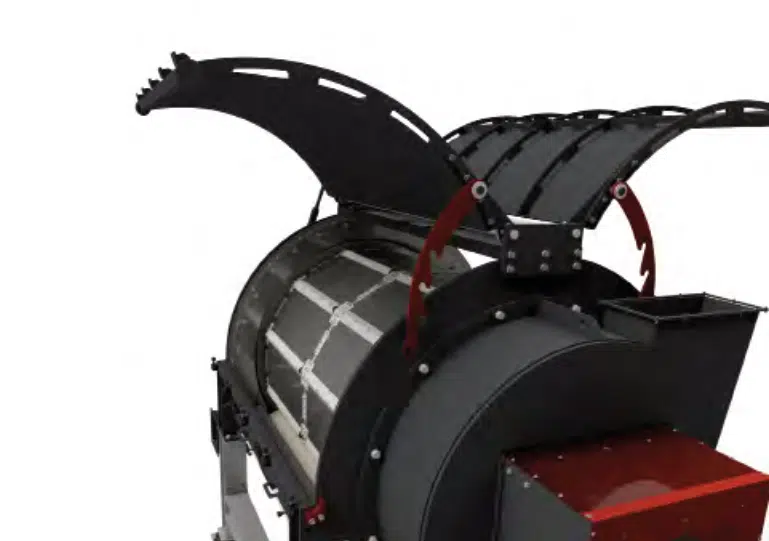

Hinged doors = 270° Maintenance

For cleaning and maintenance work, the WIPA MD is equipped with generously sized maintenance flaps above and below the machine, allowing it to be opened almost 270°. The large upper maintenance flaps are designed as hinged doors, which can be opened by a hydraulic system.

See for yourself:

This machine offers these advantages

Mechanical Cleaner

The company WIPA has developed a process to effectively clean plastic waste without water and achieves a separation of foreign materials, such as sand or organic substances from e.g. household waste of up to 98%. The process has many areas of application and in many cases is a resource-saving alternative to the conventional washing process with water. Dry cleaning can be installed before a washing system, for example, to separate a large proportion of the dirt before it comes into contact with water.

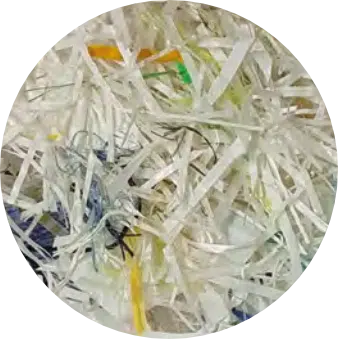

Big Bags

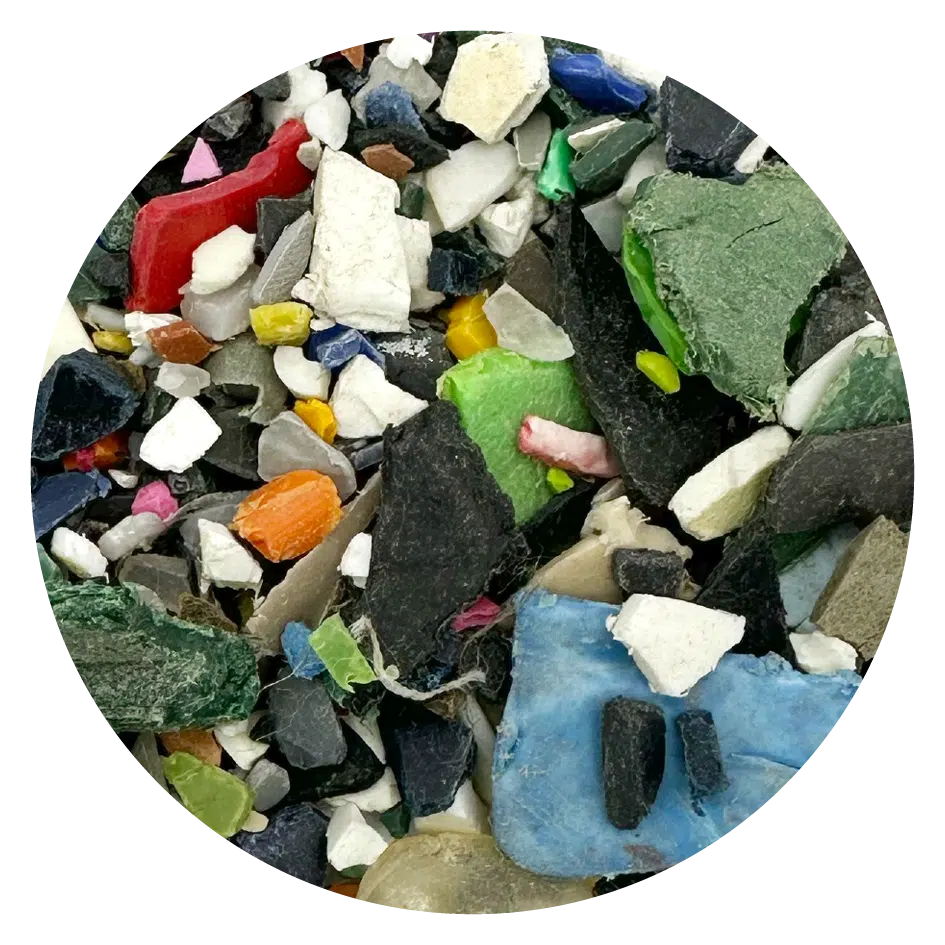

HDPE regrind

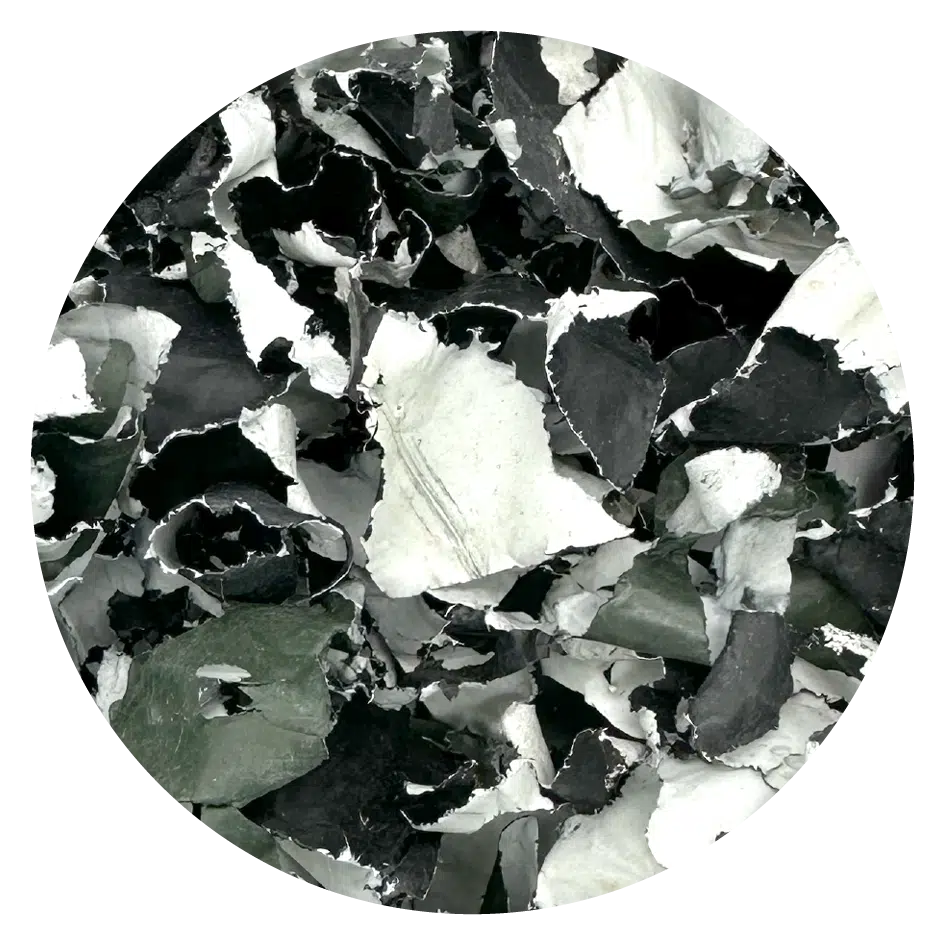

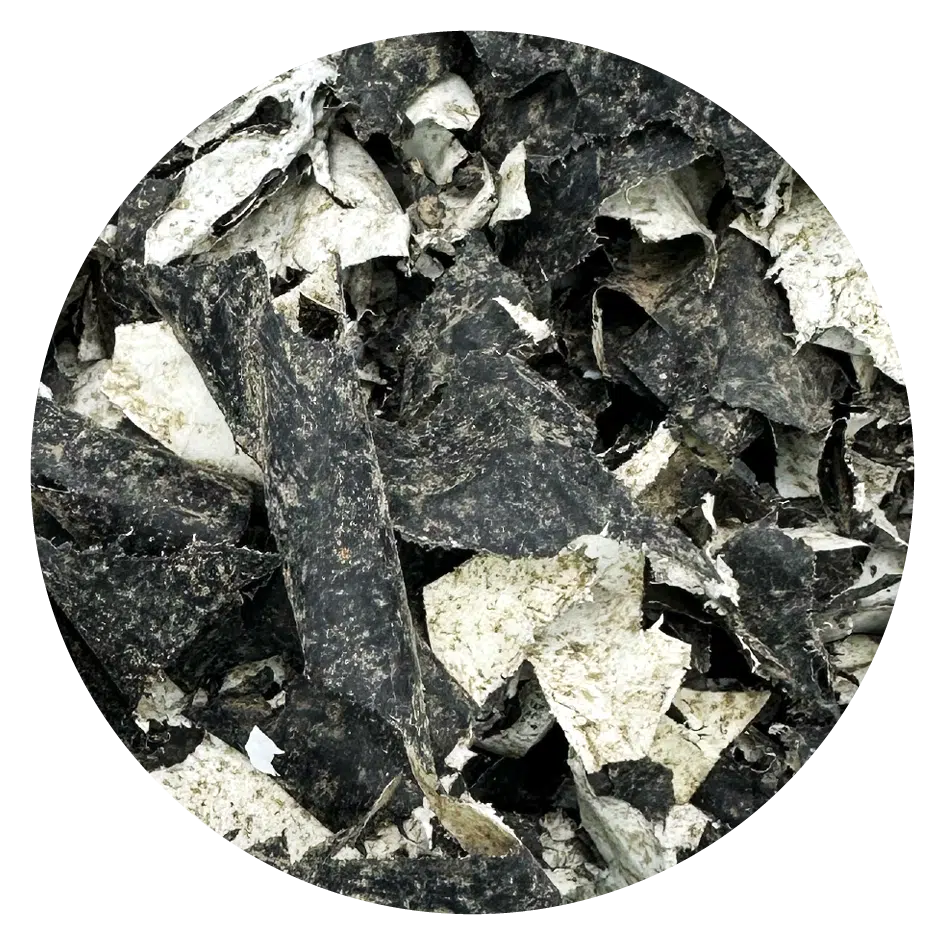

LDPE film

The intensive cleaner in 360

All data at a glance

Technical data
MD 850
MD 1000
MD 1250
MD 1500
MD 2000
Rotor diameter
850 mm
1000 mm
1250 mm
1500 mm
2000 mm
Rotor length
2900 mm
2900 mm
3500 mm
3500 mm
4400 mm
Screen surface
9,2 m²
10,1 m²
15,6 m²
17,6 m²
29,5 m²
Drive
45/55 kW
75/90 kW
90/110 kW
110/132 kW
160/200 kW
Weight in kg
900
1100
3000 – 4000
3000 – 4500
4500 – 5500
Throughput capacity up to
t/h
t/h
t/h
t/h
t/h
LDPE film
0,5
0,7
1,5
2,5
4
HDPE/PP regrind
1,5
2
3
4
8
PET bottle flakes
2
2,5
3,5
4,5
10
Drinks carton
0,6
0,8
1,7
2,7
5

Throughput rates and technical data are based on experience and may vary depending on the material.
